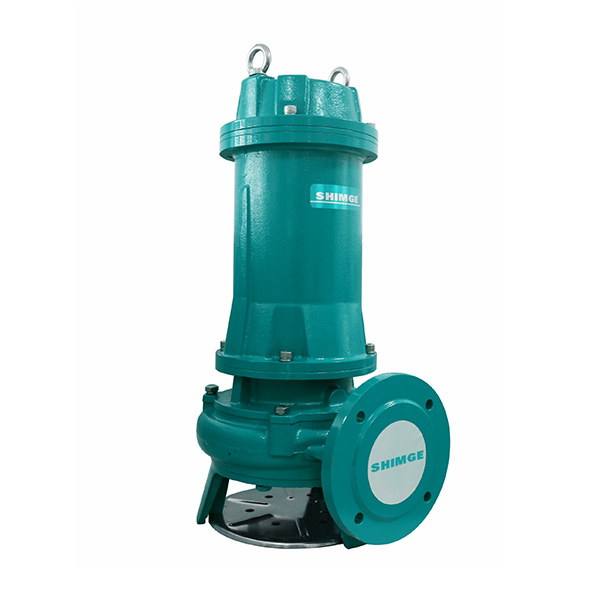

SHIMGE WQ-QG Non-Clogging Grinder Submersible Sewage Pump

50WQD0.75QG|50WQD1.1QG|50WQD1.5QG|50WQ0.75QG|50WQ1.1QG|50WQ1.5QG|50WQD2.2QG|65WQD2.2QG|50WQ2.2QG|65WQ2.2QG|50WQ3QG|65WQ3QG|65WQ4QG|80WQ4QG|80WQ5.5QG|100WQ5.5QG|80WQ7.5QG|100WQ7.5QG

The SHIMGE Pump WQ-QG submersible sewage and waste pump features a compact,portable design comprising a pump unit,a sealing system,and an electric motor.Manufactured in accordance with the GB/T24674 standard,it is widely used in sectors such as industry,agriculture,mining,and civil engineering,specifically for pumping mixed liquids containing insoluble solid matter.The pump offers excellent anti-clogging and anti-tangling capabilities,though it is not suitable for explosion-proof environments
Product Consultation By telephone
Function
Parameters
Size
Video Introduction

Function

Product Applications:

Industrial wastewater discharge, biogas digester drainage, sewage treatment, aquaculture wastewater discharge, kitchen waste drainage, and manure handling.

Operating Conditions:

1. Submergence depth: 0.5 m to 5 m.

2. Medium pH value: 4 to 10.

3. Ambient temperature: 0°C to 40°C.

4. Temperature of the pumped medium: Not to exceed +40°C.

5. Maximum density of the medium: 1.2 × 10³ kg/m³.

6. AC power supply: Rated frequency of 50 Hz; rated voltage of 380 V (three-phase); voltage fluctuation range within ±10% of the rated value.

Parameters

Specifications and Model Rated flow rate
(m³/h)		 Rated Head
(m)		 Rated Power
(kW)		 Rated voltage
(V)		 Current
(A)		 Pipe diameter
(mm)		 Overall dimensions
(mm)		 Net Weight
(kg)		 Head operating range
(m)
50WQD0.75QG 7 10 0.75 220 5.2 50 475*172*217 26 4-14
50WQD1.1QG 7 15 1.1 220 7.3 50 475*172*217 27 5-18
50WQD1.5QG 15 11 1.5 220 9.5 50 552*190*222 44 5-16
50WQ0.75QG 7 10 0.75 380 2 50 475*172*217 25 4-14
50WQ1.1QG 7 15 1.1 380 2.7 50 475*172*217 26 5-18
50WQ1.5QG 15 11 1.5 380 3.6 50 537*223*193 33 5-16
50WQD2.2QG 10 25 2.2 220 13.5 50 559*202*244 46 10-30
65WQD2.2QG 25 13 2.2 220 13.5 65 557*229*273 47 5-20
50WQ2.2QG 10 25 2.2 380 5.1 50 524*202*244 42 10-30
65WQ2.2QG 25 13 2.2 380 5.1 65 522*274*229 34 5-20
50WQ3QG 15 22 3 380 6.7 50 298*200*256 55 10-25
65WQ3QG 35 13 3 380 6.7 65 603*265*209 45 5-20
65WQ4QG 20 25 4 380 8.8 65 606*215*287 60 10-30
80WQ4QG 45 15 4 380 8.8 80 606*292*230 51 5-22
80WQ5.5QG 40 20 5.5 380 11.7 80 677*243*317 82 10-28
100WQ5.5QG 60 15 5.5 380 11.7 100 682*316*254 80 5-24
80WQ7.5QG 45 25 7.5 380 15.7 80 677*243*317 90 10-35
100WQ7.5QG 80 15 7.5 380 15.7 100 685*337*272 89 5-26
